Allows one operator to spread fabric layers
Saves time
Reduces labour requirements
Reduces manual work
Provides straight fabric edges
Can also be used as a flat table
Needle Table
15.000,00 ₺ + TAX
Description
Needle Table

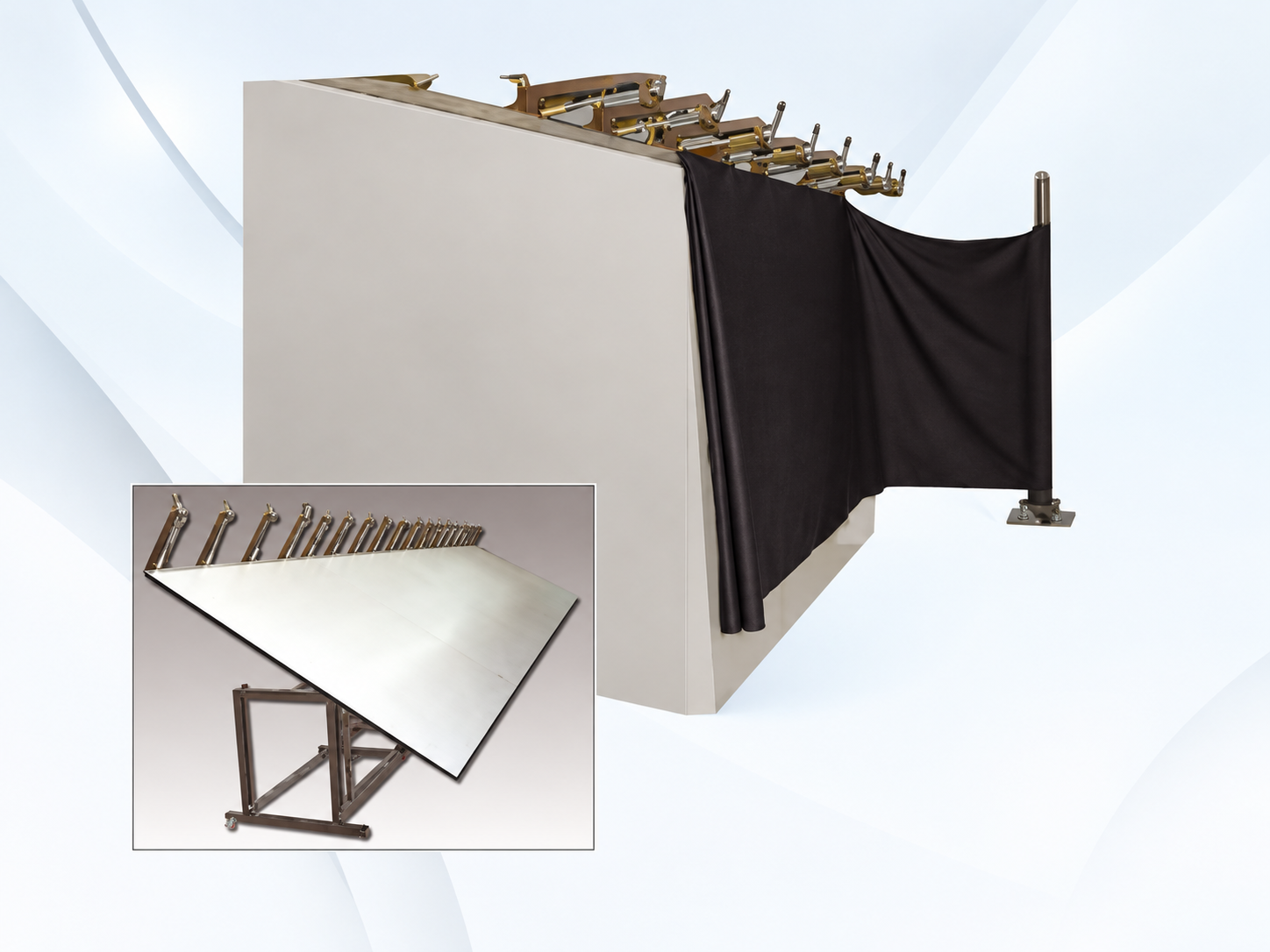

Needle-Arm Fabric Spreading and Cutting Table KM 3000
KM 3000 Needle-Arm Fabric Spreading and Cutting Table
The needle table helps one operator spread fabric layers more quickly and easily.
Chiffon-chiffon Silk-woven all types of fabric-Chiffon-chiffon-silk-viscon-all fabrics including the table can be thrown in the upright position You can throw all fabrics including viscose in the table upright position
Apart from that, you can use your lining and interlining materials as you want, very comfortable and practical.
Needle Table
One of the great features is that you can work with one person at the desk and provide faster laying
No matter how crooked or crooked the fabric is, thanks to your arms, one side of your pie is always smooth
There are two arms per meter in our products
Table sizes can be specified by our customers
Up to 13 meters in one piece
We have two kinds of products
Product Manual table manpower lift table
Product Jacked table
This product can be lifted to the left or right side of the table.
This product is offered to you as an additional cost if requested.
The jacked table must be made in the first order, the cost increases more if you want to have manual tables later.
There are forty needles in our needle arms.
Feet and main connection parts 40×60 box profile.
40×40 angle iron on the foot lower links.
Top connections 40×20 box profile.
Wood part white mdf 18 mm.
Needle arms are located in the tube of 48.
Needle Table
Our company manufactures needleed table as well as fastening machines click here
Needle arms are based on z aluminum custom made
Electrostatic powder paint
Needle bar body part injection aluminum
Ability to lay a marker with one person
Saving on time
labor and labor savings
Saving from work
Seamless straight edge
Can be used as a flat table
METER PRICE
TERMINATION TIME IS 10 DAYS
NOTE: ORDER IS PRODUCED. The jack is not included in the price. Please ask for extra price.
Needle Table
Ability to lay a marker with one person
Saving on time
Labor and labor savings
Saving from work
Seamless straight edge
Can be used as a flat table
Additional information
| Operating system | Manual; jack-assisted option available when ordering |
|---|---|
| Applications | Fabric spreading and lay cutting |
| Size options | Made to order; up to 13 metres in one piece |
| Number of arms | 2 arms per metre |
| Number of needles | 40 per arm |
| Tabletop | 18 mm white MDF |
| Main frame profile | 40 × 60 mm box section |
| Optional equipment | Jack system; not included as standard |
| Production type | Made to order |
