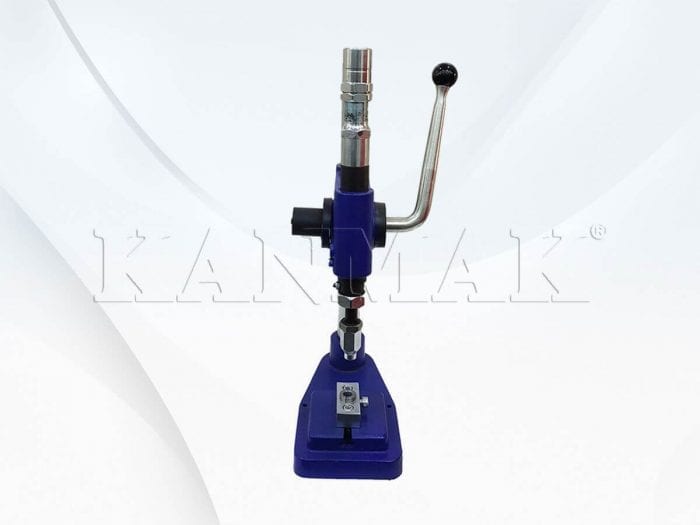

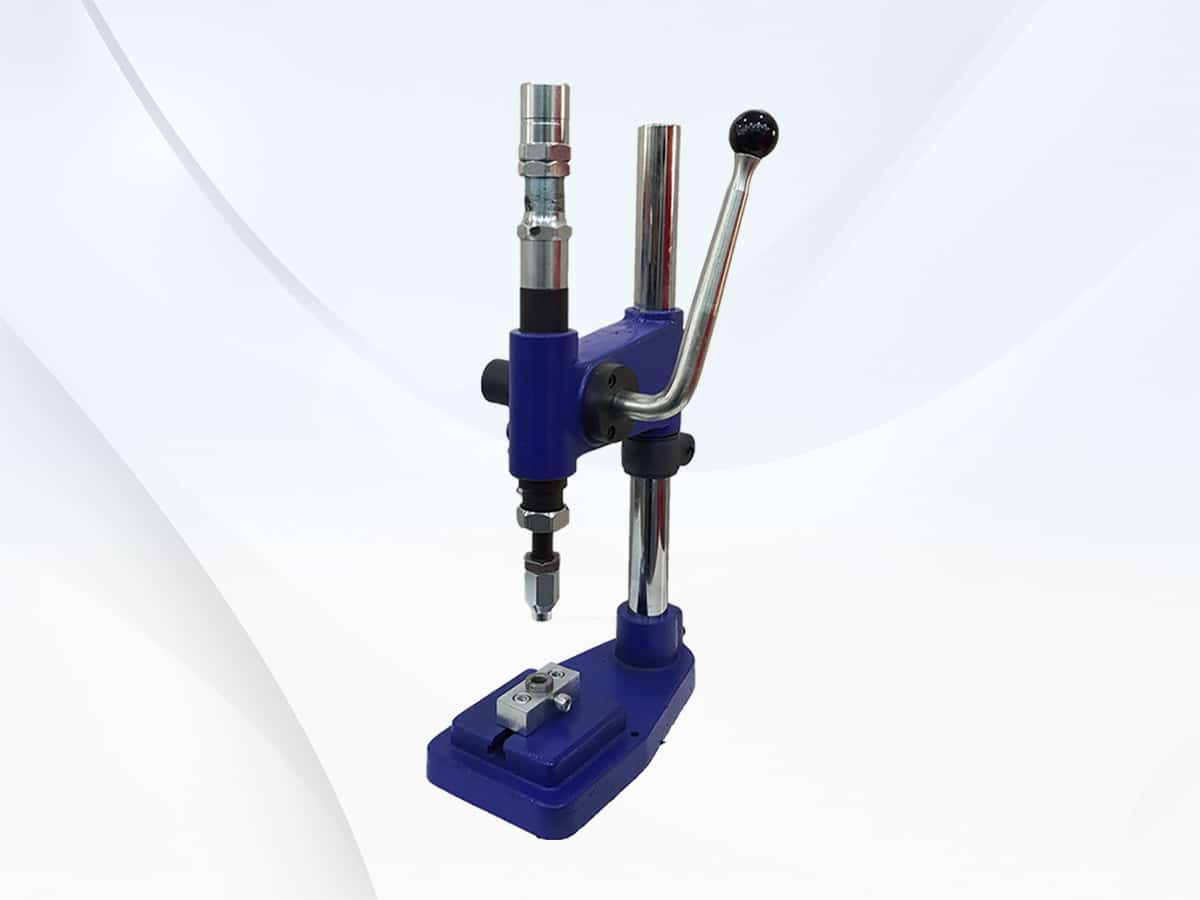

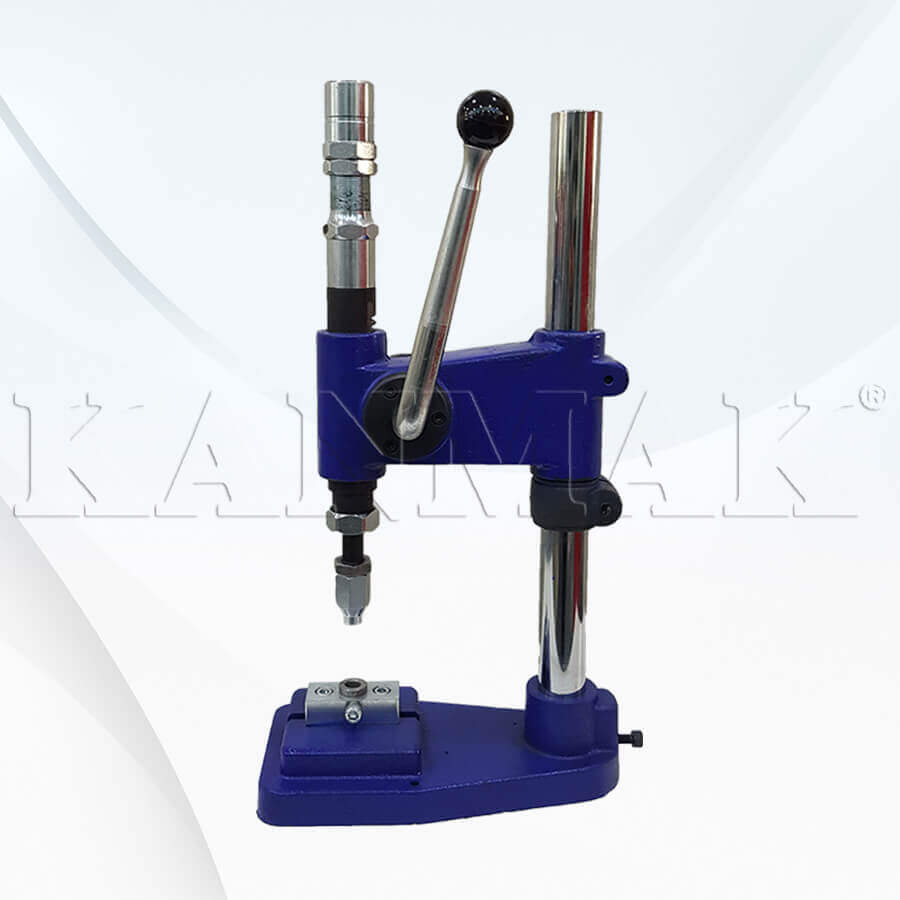

Lever-Operated Impact Press for Snap Fastening KM 700

Original price was: 17.000,00 ₺.Current price is: 14.000,00 ₺. + TAX

The KM 700 lever-operated impact press supports snap, eyelet, rivet, hook and other accessory applications. Its CNC-machined cast-iron body offers adjustable height and die alignment, approximately 1300 kg/cm² maximum impact pressure and die changes in about one minute.

Description

Lever-Operated Impact Press for Snap Fastening KM 700

The KM 700 provides a strong, practical manual press for accessory fastening, piercing, punching and assembly. Kanmak manufactures its cast-iron body and precision-machines the body components on CNC equipment.

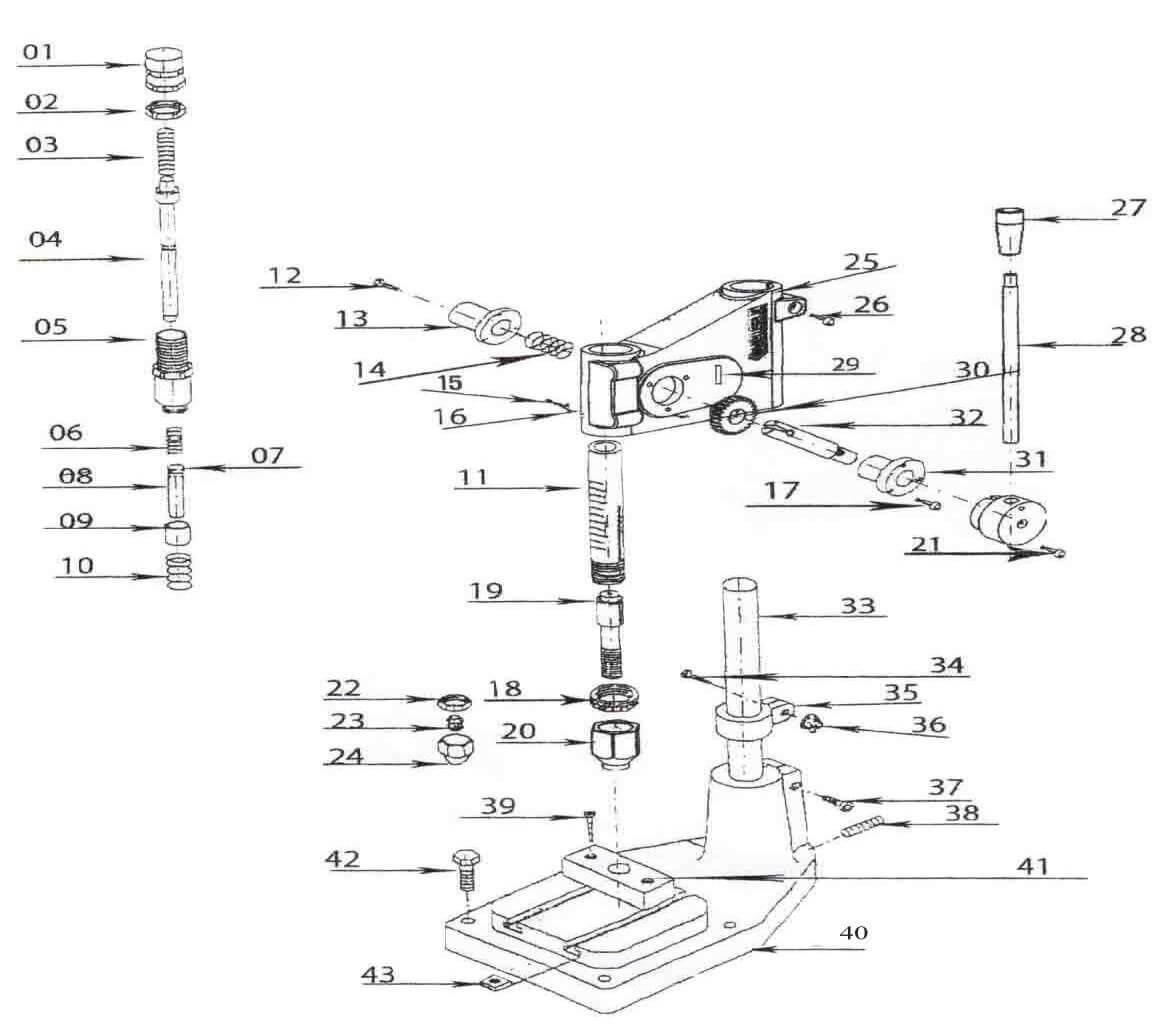

The machine consists of two main cast parts. Height adjustment accommodates different workpiece sizes, making it useful in both textile production and other industrial applications.

Cast-Iron Body Construction

The cast-iron main body distributes the force generated during impact. Heat-treated and hardened steel components support demanding operating conditions. The mechanical construction maintains stable pressing performance over extended use.

Adjustment System

Fit the upper and lower dies, then align their centres. An Allen screw at the rear of the upper body controls left-right and height adjustment: loosen it to position the upper die. The lower die holder allows forward-backward adjustment. Align the dies, place the workpiece between them and carry out the pressing operation.

Quick Die Changes

The operator can change a die in approximately one minute. This makes it practical to switch from eyelet setting to snap fastening or other work. Different tooling options add flexibility and allow one machine to handle many accessory applications.

Supported Operations

With the appropriate dies, the KM 700 supports:

  • Snap fastening and eyelet setting
  • Rivet and tubular rivet application
  • Button covering
  • Hook, decorative stud and ring-snap application
  • Piercing and punching
  • Marking and assembly
  • Edge bending

The press is therefore useful beyond textile accessories, including industrial pressing and assembly with suitable tooling.

Application Areas

  • Textiles and ready-to-wear clothing
  • Advertising, signs and banners
  • Footwear and leather goods
  • Electrical and electronic assembly
  • Door and window production
  • Aluminium work and roller shutters
  • Packaging and traffic plate processing
  • Automotive applications
  • Printing
  • Cosmetics product assembly
  • Toy assembly

Workshops can change dies quickly to move between different jobs on the same machine.

Maintenance

Keep the vertically moving shaft system clean and lubricate it with suitable grease. Weekly cleaning and lubrication help the moving mechanism operate consistently and support long-term efficiency. This simple routine also makes maintenance easy to plan.

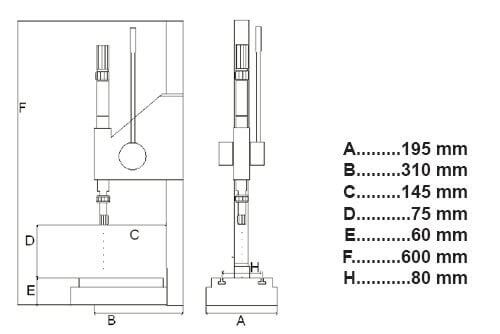

Technical Specifications

  • Model: KM 700
  • Maximum impact pressure: 1,300 kg/cm²
  • Workpiece height: 200 mm
  • Column diameter: Ø36 mm
  • Distance between shafts: 140 mm
  • Table size: 100 × 100 mm
  • Collet hole: Ø9 mm
  • T-slots: 8 H 12 DIN 650
  • Dimensions: 470 × 270 × 130 mm
  • Weight: 19 kg
  • Body: cast iron, two main cast parts
  • Height adjustment: yes
  • Left-right adjustment: yes
  • Forward-backward adjustment: yes
  • Die change time: approximately one minute
  • Operation: manual lever-operated impact press

Different Applications on One Machine

Changing the dies lets the operator switch production tasks without using a separate press for every operation. Quick tooling changes save production time, while the adjustment system accommodates different accessories and workpieces.

Compare our snap fastening machines and accessory attaching machines for other applications.

Safe Operation

Check the alignment of the upper and lower dies before fastening. Choose tooling that matches the material and control the operating lever while adjusting the machine. These steps support consistent, controlled work. Compare different operating systems in our snap fastening machine range.

Versatile Production with the KM 700

The cast-iron body, strong impact mechanism, easy centre adjustment and quick die changes provide a versatile pressing solution. Appropriate dies allow snaps, eyelets, rivets, hooks and other accessories to be applied on one machine, supporting practical, flexible production in textiles and industry.

Watch Kanmak machine application videos on the Kanmak YouTube channel.

Additional information

Weight19 kg
Dimensions58 × 38 × 25 cm
Model

KM 700

Operating system

Manual lever-operated impact press

Body

Cast iron

Impact force

Maximum 1300 kg/cm²

Workpiece height

200 mm

Column diameter

36 mm

Table size

100 × 100 mm

Collet bore

9 mm

Die change

Approximately 1 minute
