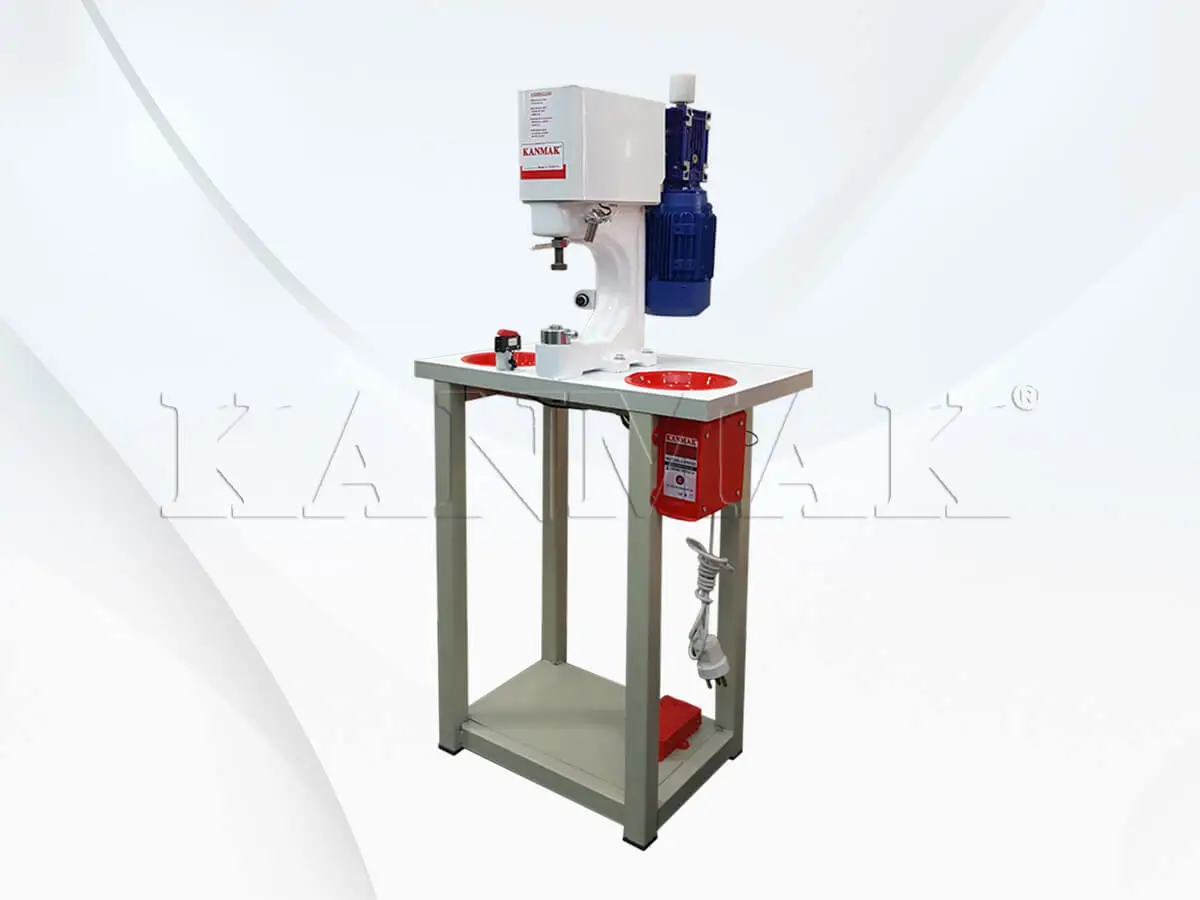

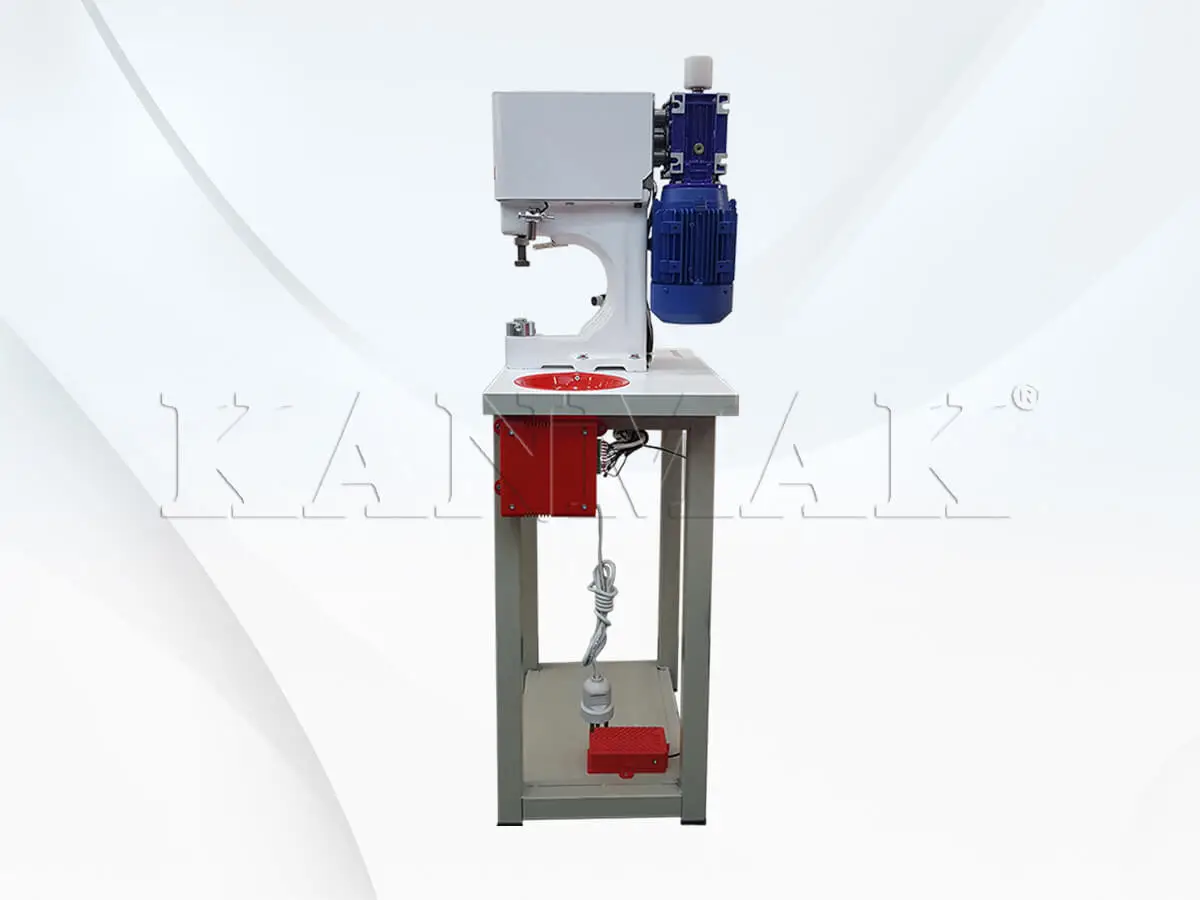

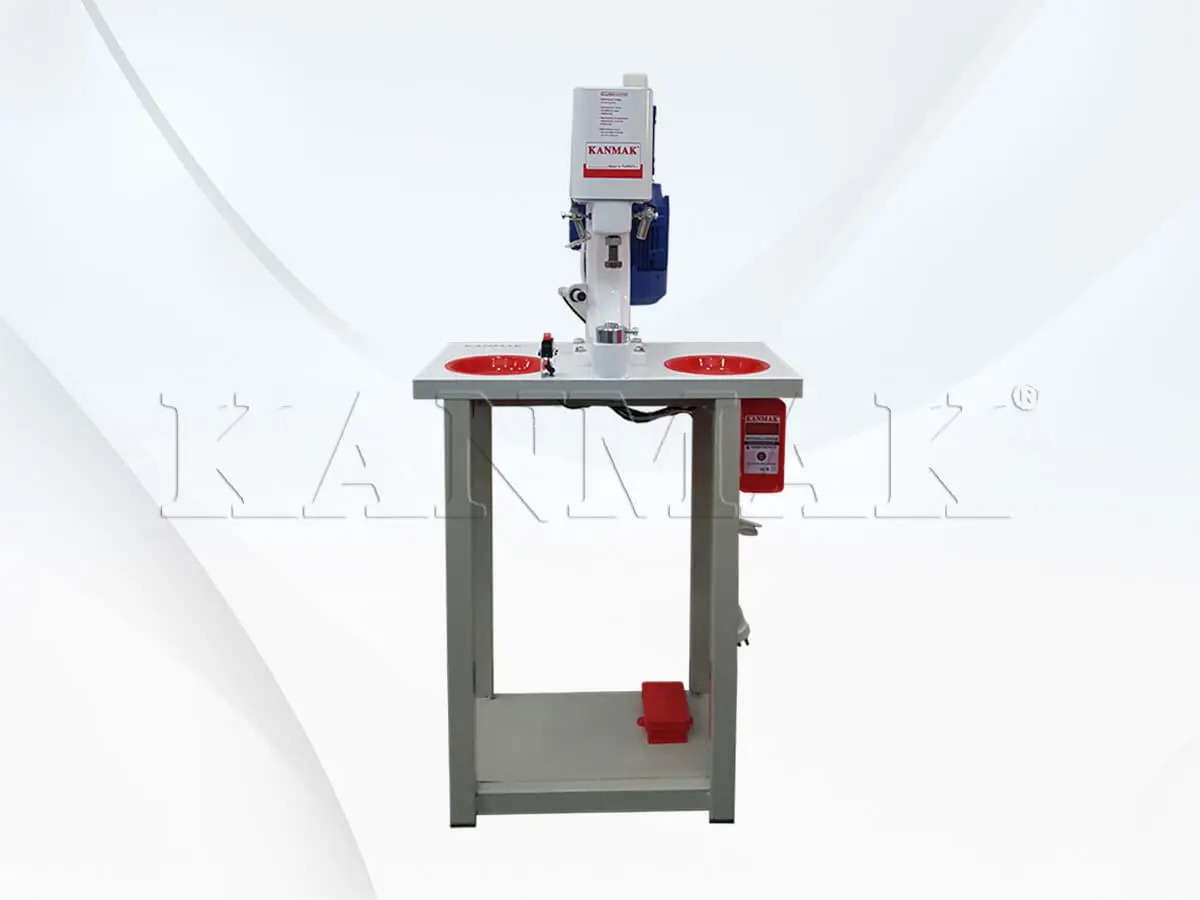

Motorized Snap Fastening Machine KM 500

Original price was: 55.000,00 ₺.Current price is: 45.000,00 ₺. + TAX

The KM 500 is a quiet motorized press for snaps, eyelets, rivets, buttons and hooks. Its cast-iron body and geared mechanism provide consistent strokes. The standard model runs on 380 V, with a 220 V option. It offers approximately 1 tonne pressing force, 8,000–10,000 strokes/day and a 15-year warranty against spindle play.

General machine warranty: 2 years. The 15-year warranty applies to shaft play.

SKU: KM500 Categories: , , , , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

Motorized Snap Fastening Machine KM 500 — Silent Model

The KM 500 provides a powerful, quiet and versatile solution for textile and accessory production. It fastens snaps, eyelets, rivets, tubular rivets, buttons and hooks. Different dies allow the same machine to perform many production tasks.

The standard model runs on 380 V; a 220 V option is also available. Choose the version that matches your electrical installation.

Kanmak uses a durable cast-iron body and CNC-machined mechanical components to support balanced, strong and stable operation over long periods.

Special Bush-Guided Shaft System

The special bush system guides shaft movement accurately, producing balanced results on each stroke. It helps retain shaft precision during extended use. Kanmak provides a 15-year warranty against play in the KM 500 shaft system, benefiting intensive and repetitive production.

Quiet, Controlled Fastening

The geared eccentric mechanism runs quietly and quickly and applies consistent pressure each cycle. The geared arrangement supports die life, while appropriate pressure and machine adjustment help reduce accessory damage.

The KM 500 can work with rhinestone and painted accessories. Correct tooling and pressure are particularly important with knitted and other elastic fabrics to help reduce tearing and deformation.

Supported Applications

  • Snap and eyelet fastening
  • Rivet and tubular rivet fastening
  • Buttons and hooks
  • Ring snaps and decorative studs
  • Trouser, skirt and boot hooks
  • Piercing with suitable attachments

This versatility makes the machine useful in textiles, clothing, bags and footwear. Changing dies allows different accessory operations on one machine.

Safety and Control Systems

Laser positioning shows the fastening point clearly. The hand protection sensor and safety switch support operator protection, while the LED work light improves visibility and product placement.

The electronic board controls operation. If incorrect adjustment causes the machine to lock, the system cuts motor power to protect the motor. An electronic counter lets the operator monitor total strokes and production quantities.

Technical Specifications

  • Standard supply: 380 V
  • Optional supply: 220 V
  • Motor power: 0.37 kW
  • Motor speed: 1,425 rpm
  • Frequency: 50 Hz
  • Gearbox: ESV 50 / 7.5
  • Pressing force: approximately 1 tonne
  • Maximum speed: one stroke per second
  • Daily output: approximately 8,000–10,000 strokes
  • Laser positioning
  • Hand protection sensor and safety switch
  • LED work light
  • Electronic counter
  • Electronic motor protection
  • Cast-iron body
  • Locally manufactured motor and gearbox system

Dimensions and Weight

Machine dimensions are 38 × 62 × 126 cm and weight is approximately 52.3 kg. The compact arrangement helps use production space efficiently while maintaining a stable installation.

Working Video

Watch the KM 500 working video on the Kanmak YouTube channel to see the fastening mechanism, operating principle and applications in more detail.

Manufactured in Türkiye

Kanmak manufactures the KM 500 in Türkiye and checks each production stage. Technical support and spare parts are available. Our focus on durability, quality and ease of use supports long-term efficiency.

The combination of quiet operation, strong pressure, a cast-iron body and the special shaft system provides a versatile professional solution. For automatic baby snap production, also see the KM 6100 male and female automatic baby snap fastening set.

Related Products, Categories and Resources

General machine warranty: 2 years. Warranty against shaft play: 15 years.

Additional information

Weight52,3 kg
Dimensions38 × 62 × 126 cm
Model

KM 500

Operating system

Motor-driven eccentric system with reduction gearbox

Power supply

380 V; 220 V model available

Motor power

0.37 kW

Motor speed

1425 rpm

Frequency

50 Hz

Pressing force

Approximately 1 tonne

Production capacity

Approximately 8,000–10,000 strokes per day

Body

Cast iron

Safety features

Hand protection sensor and safety switch

Positioning

Laser positioning

Shaft play warranty

15 years against play in the shaft system

General machine warranty

2 years
